Dpo4 Polymerase IV

(All numbering and residues are taken from first PDB file)

Run Details Domains Sequence Morph Domain Pairs Contact Graph

DynDom run details

  Property   Value
  Name Dpo4 Polymerase IV
  Conformer 1
(PDB) 		2au0 (B)
  Conformer 2
(PDB) 		2rdi (A)
  Window Length 5
  Minimum ratio 1.0
  Minimum domain size 20

Domains

Domain Size Backbone RMSD
(A)		 Residues
1 116 0.63   1003 - 1014   1077 - 1174   1232 - 1237
2 56 1.41   1015 - 1076
3 57 0.67   1175 - 1231
4 98 0.6   1242 - 1339

Sequence


           __________1014__________________________________________________________1076____________________________________________
 2au0(B) : GIVLFVDFDYFYAQVEEVLNPSLKGKPVVVCVFSGRFEDSGAVATANYEARKFGVKAGIPIVEAKKILPNAVYLPMRKEVYQQVSSRIMNLLREYSEKIEIASIDEAYLDISDKVRDYRE
         :
 2rdi(A) : MIVLFVDFDYFYAQVEEVLNPSLKGKPVVVCVFsG------AVATANYEARKFGVKAGIPIVEAKKILPNAVYLPMRKEVYQQVSSRIMNLLREYSEKIEIASIDEAYLDISDKVRDYRE
           ____________14____________________________________________________________76____________________________________________

           __________________________________________________1174_____________________________________________________1231__1237___
 2au0(B) : AYNLGLEIKNKILEKEKITVTVGISKNKVFAKIAADMAKPNGIKVIDDEEVKRLIRELDIADVPGIGNITAEKLKKLGINKLVDTLSIEFDKLKGMIGEAKAKYLISLARDEYNEPIRTR
         :
 2rdi(A) : AYNLGLEIKNKILEKEKITVTVGISKNKVFAKIAADMAKPNGIKVIDDEEVKRLIRELDIADVPGIGNITAEKLKKLGINKLVDTLSIEFDKLKGMIGEAKAKYLISLARDEYNEPIRTR
           ___________________________________________________174______________________________________________________231___237___

           ______________________________________________________________________________________________________
 2au0(B) : VRKSIGRIVTMKRNSRNLEEIKPYLFRAIEESYYKLDKRIPKAIHVVAVTEDLDIVSRGRTFPHGISKETAYSESVKLLQKILEEDERKIRRIGVRFSKFI*
         :
 2rdi(A) : VRKSIGRIVTMKRNSRNLEEIKPYLFRAIEESYYKLDKRIPKAIHVVAVTEDLDIVSRGRTFPHGISKETAYSESVKLLQKILEEDERKIRRIGVRFSKFIT
           ______________________________________________________________________________________________________

Morph
Morph animation in progress.
Status: Initialising

This morph was created using the MorphIt_Pro protein morphing technique.
For more advanced options, right click on the model.


Show console


play backwards pause play forwards

Domain Pairs

Property Value
Fixed Domain
( blue ) 		1
Moving Domain
( red ) 		2
Rotation Angle
(deg) 		15.1
Translation
(A) 		-0.4
Closure
(%) 		19.6
Bending Residues
( green ) 		  1014 - 1015
  1076 - 1079
Bending Region Analysis
Property Value
Fixed Domain
( blue ) 		1
Moving Domain
( yellow ) 		3
Rotation Angle
(deg) 		14.7
Translation
(A) 		0.2
Closure
(%) 		93.1
Bending Residues
( green ) 		  1174 - 1175
  1231 - 1232
Bending Region Analysis
Property Value
Fixed Domain
( blue ) 		1
Moving Domain
( violet ) 		4
Rotation Angle
(deg) 		130.1
Translation
(A) 		-0.3
Closure
(%) 		13.2
Bending Residues
( green ) 		  1237 - 1243
Bending Region Analysis

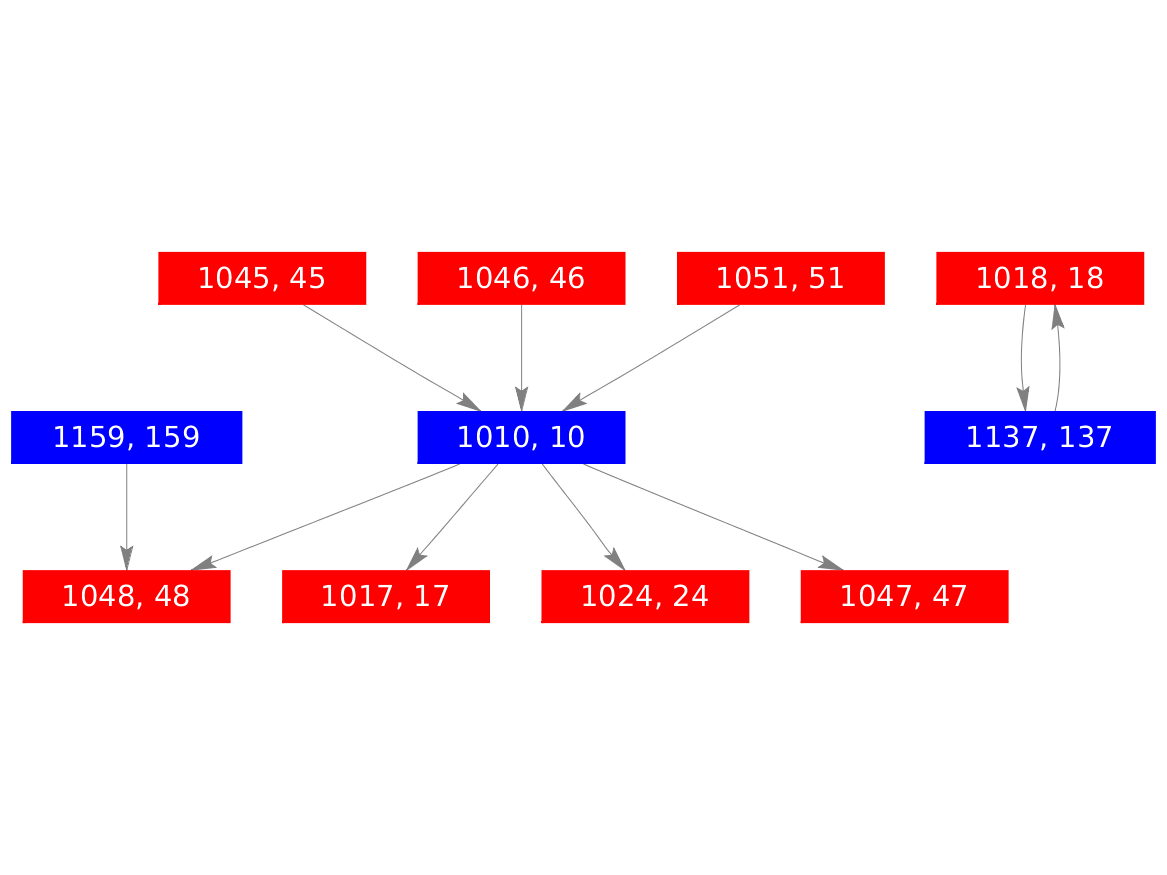

Dynamic Contact Graph

Conformer 1 Contact:
Residue 1 ———› Residue 2

Conformer 2 Contact:
Residue 2 ———› Residue 1

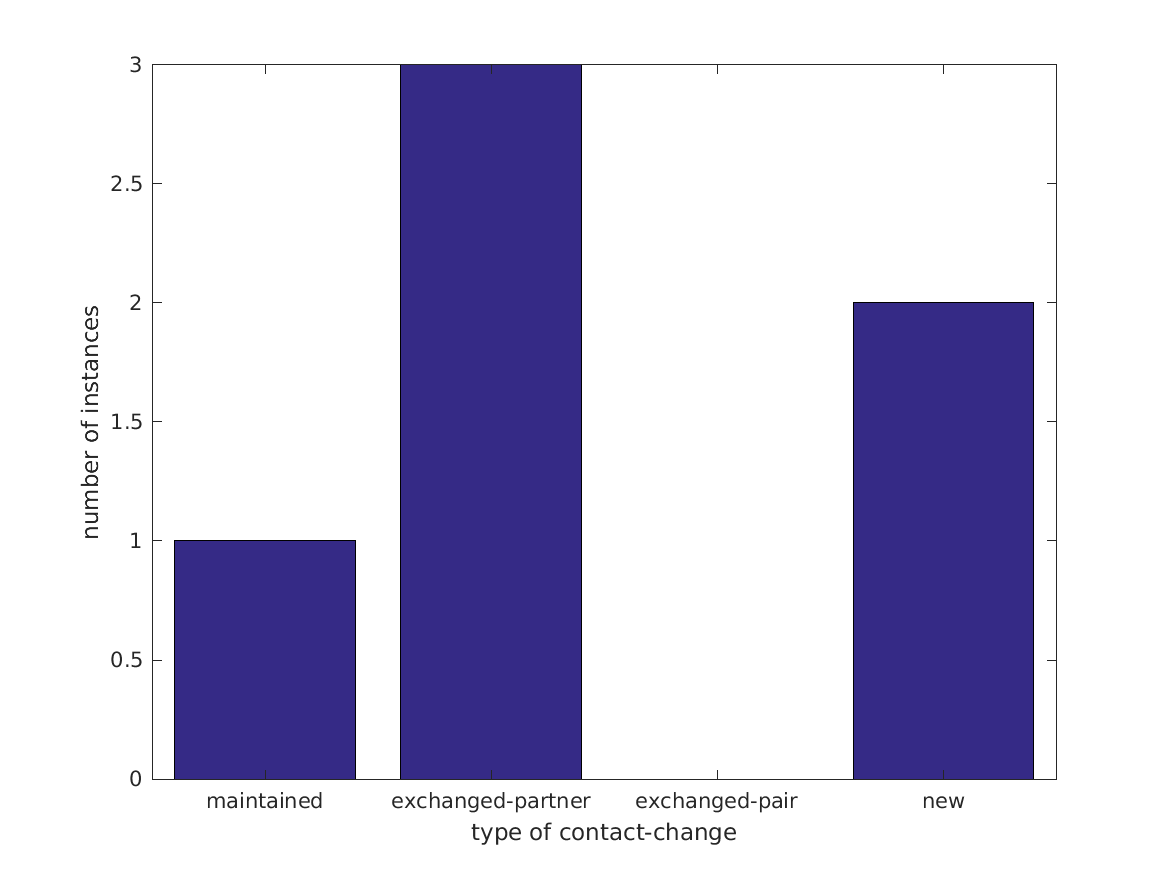

Movement classification: Hinge

Conformer 1 Contact:
Residue 1 ———› Residue 3

Conformer 2 Contact:
Residue 3 ———› Residue 1

Movement classification:

No Contacts

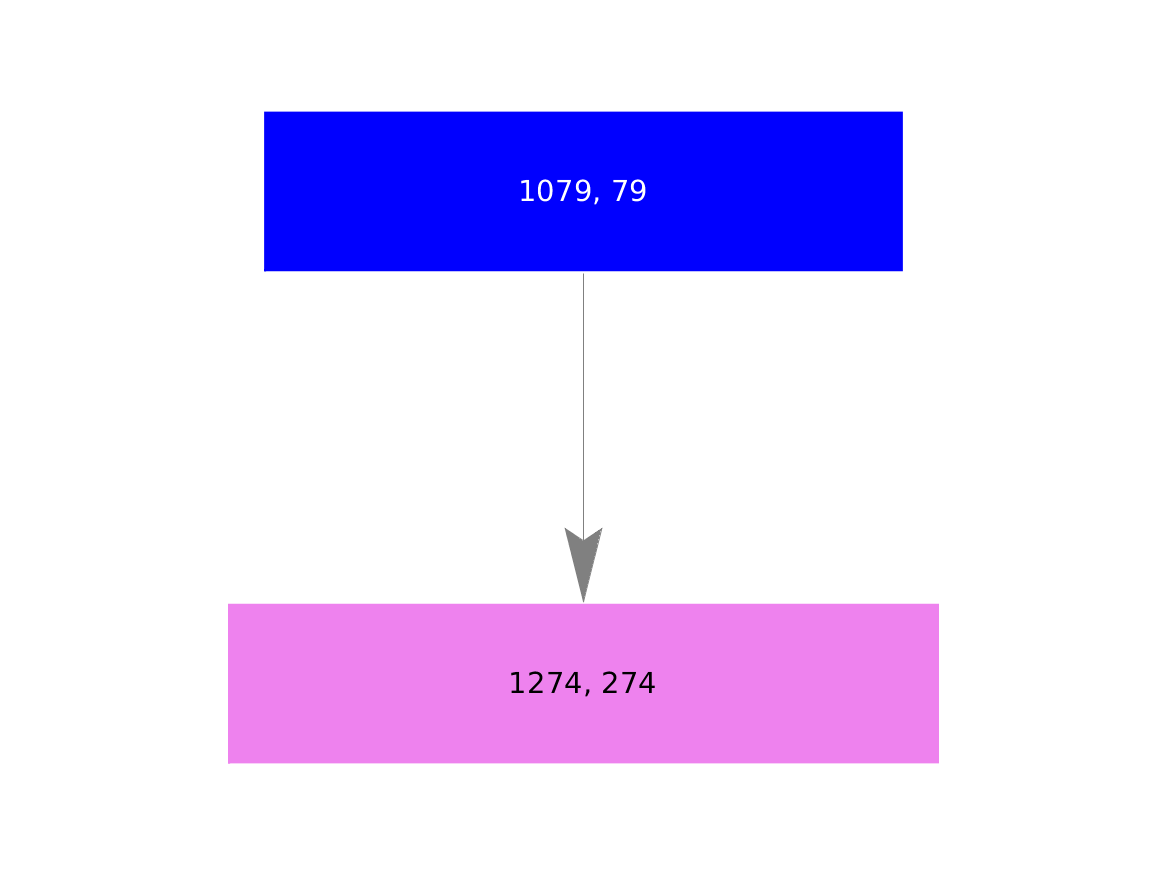

Conformer 1 Contact:
Residue 1 ———› Residue 4

Conformer 2 Contact:
Residue 4 ———› Residue 1

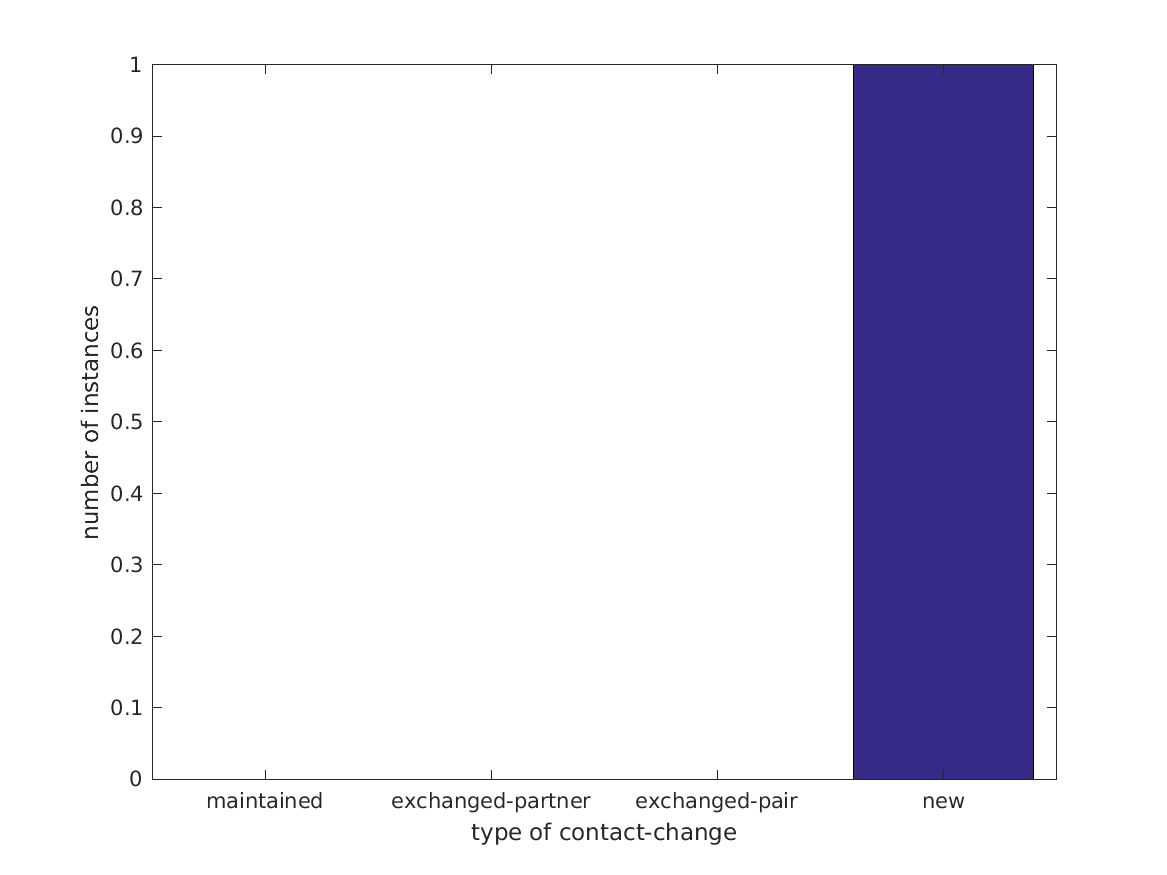

Movement classification: Hinge

PyMOL Script

Download and extract PyMOL PML script file Download
